Bridge Rectifiers | Status : NRND

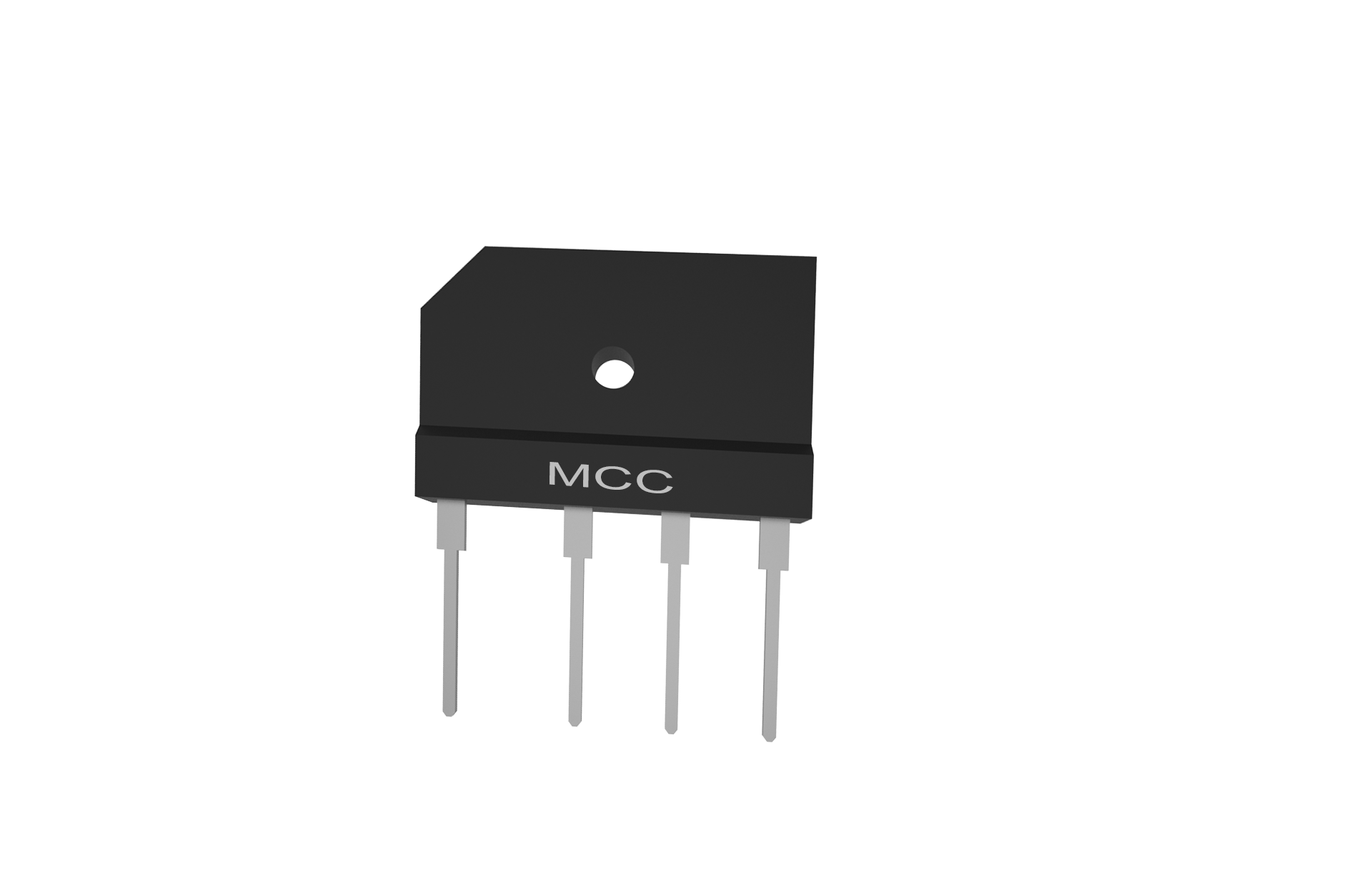

GBJ20005

  • Package Type:GBJ
  • Packing Info:Tube : 15pcs/Tube, 750pcs/Box, 1.5K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:GBJ20005-BP
Check Stock Add To Cart

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)
IR (uA)  [max] @
VR
IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBJ20005 1-Phase Bridge 20 50 1.05 10 240 10 50 150
Part Number GBJ20005 Number of Functions 1-Phase Bridge IF(AV)(A)  20 VRWM (V)  50 VF
(V) [max]@IF(A)
 1.05
IR (uA)  [max] @
VR
 10
IFSM (A)  240 IF(A)  10 VR (V)  50 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBJ20005 GBJ GBJ 6.8730 GBJ20005

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
