Bridge Rectifiers | Status : NRND

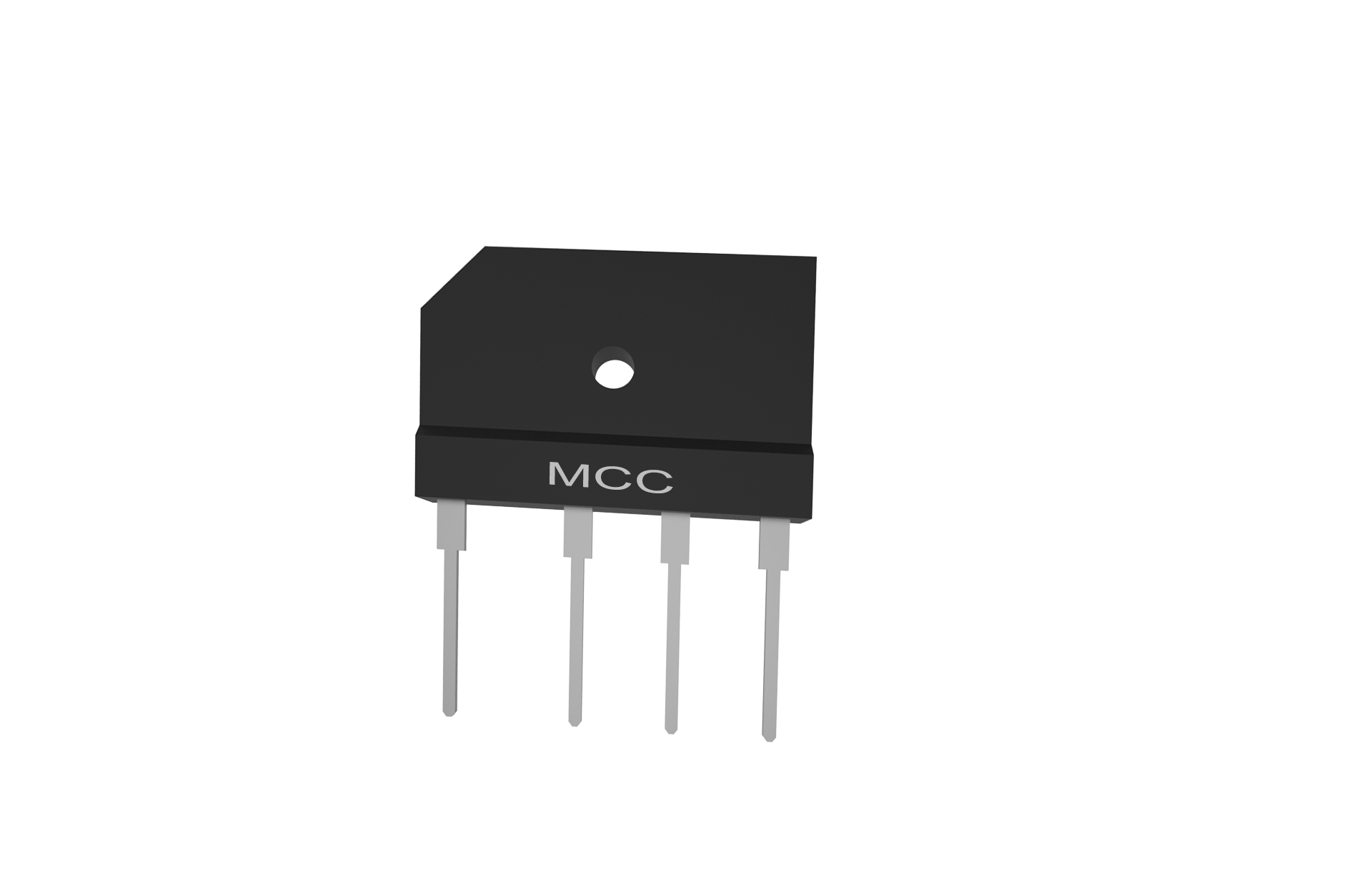

GBJ2004

  • Package Type:GBJ
  • Packing Info:Tube : 15pcs/Tube, 750pcs/Box, 1.5K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:GBJ2004-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBJ2004 1-Phase Bridge 20 400 1.05 10 240 10 400 150
Part Number GBJ2004 Number of Functions 1-Phase Bridge IF(AV)(A)  20 VRWM (V)  400 VF
(V) [max]@IF(A)  1.05 		IR (uA)  [max] @
VR  10 		IFSM (A)  240 IF(A)  10 VR (V)  400 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBJ2004 GBJ GBJ 6.8730 GBJ2004

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 0.00 0.0

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
