Bridge Rectifiers | Status : Active

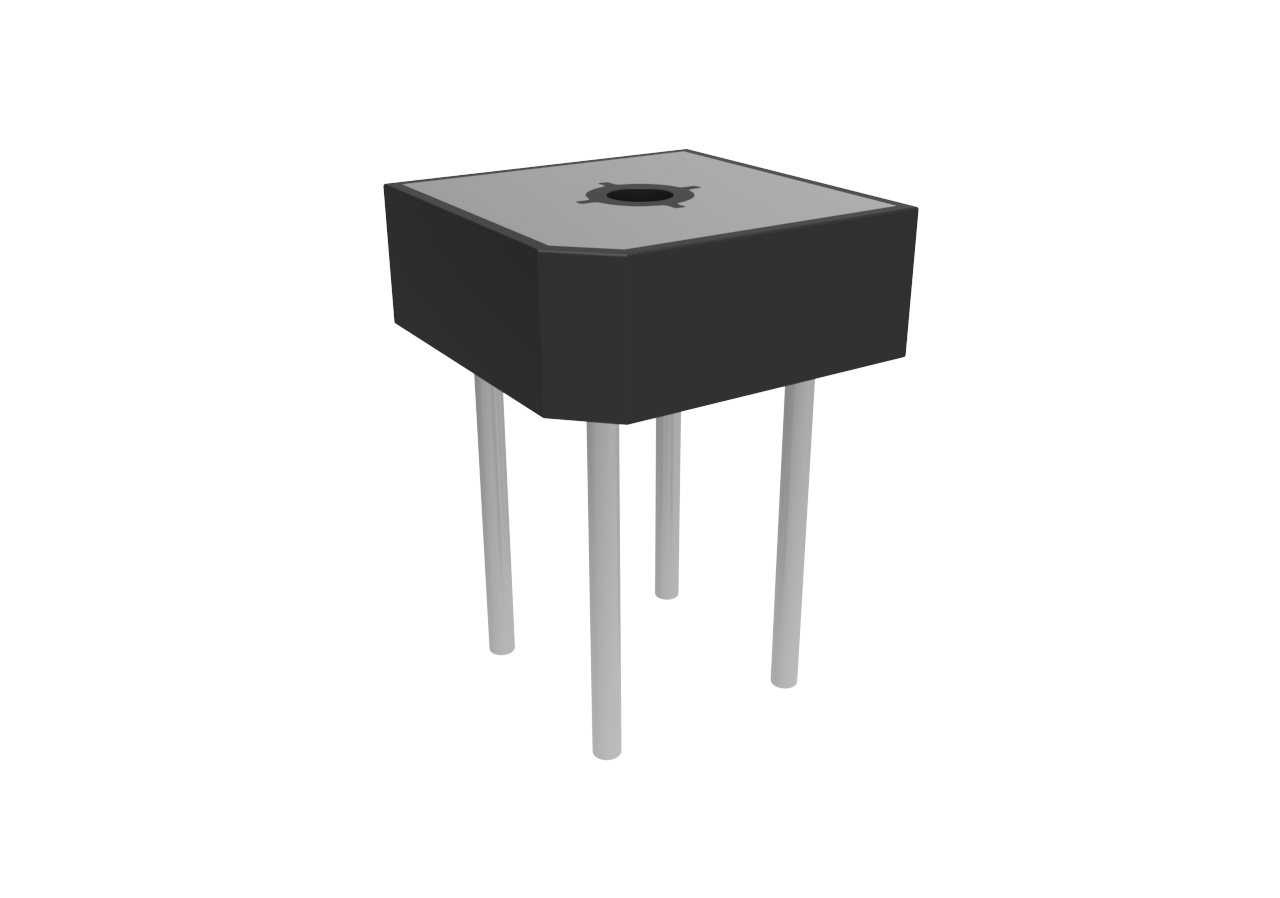

MP156W

  • Package Type:MP-50W
  • Packing Info: Bulk: 50pcs/Box, 400pcs/Ctn;
  • Category:Bridge Rectifiers
Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
MP156W 1-Phase Bridge 15 600 1.1 5.0 300 7.5 600
Part Number MP156W Number of Functions 1-Phase Bridge IF(AV)(A)  15 VRWM (V)  600 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  5.0 		IFSM (A)  300 IF(A)  7.5 VR (V)  600 Tj [max] (°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MP156W MP-50W MP-50W 14.5000 MP156W

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report

ECN/PCN

ECN/PCN No# Title PDF Issued Date
051518-1 MCC will use laser mark instead of ink mark for power bridge rectifiers PDF 05/15/2018
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
