Bridge Rectifiers | Status : Active

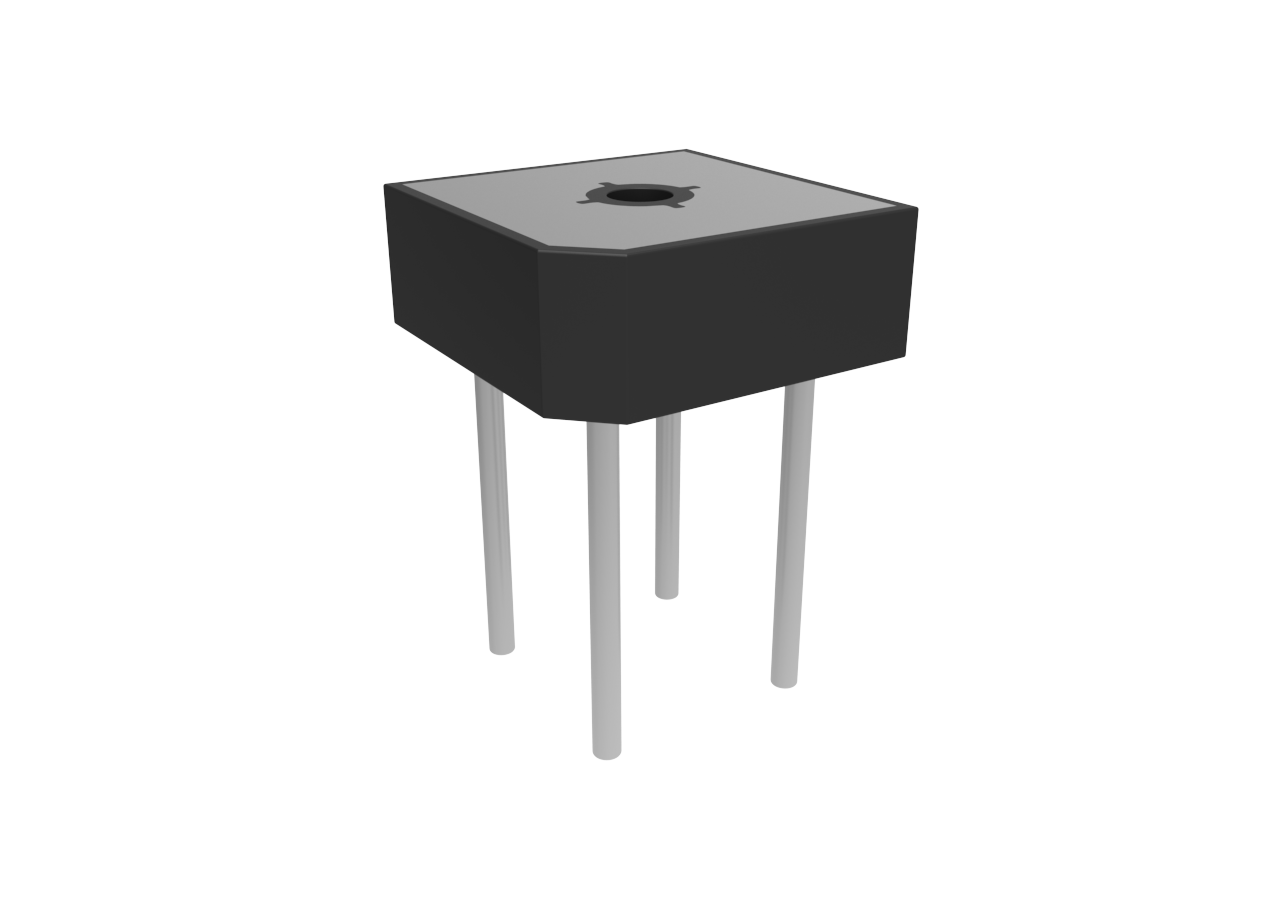

MP5010W

  • Package Type:MP-50W
  • Packing Info:Bulk: 50pcs/Box, 400pcs/Ctn;
  • Category:Bridge Rectifiers
  • MPN:MP5010W-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
MP5010W 1-Phase Bridge 50 1000 1.1 10 450 25 1000 150
Part Number MP5010W Number of Functions 1-Phase Bridge IF(AV)(A)  50 VRWM (V)  1000 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  10 		IFSM (A)  450 IF(A)  25 VR (V)  1000 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
MP5010W MP-50W MP-50W 14.5000 MP5010W

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 22483.04 5.1

ECN/PCN

ECN/PCN No# Title PDF Issued Date
051518-1 MCC will use laser mark instead of ink mark for power bridge rectifiers PDF 05/15/2018
090112_1 MCC Switch to Glass Passivated Pellet Chip for High Power Bridge Rectifiers PDF 09/01/2012
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
