Bridge Rectifiers | Status : Active

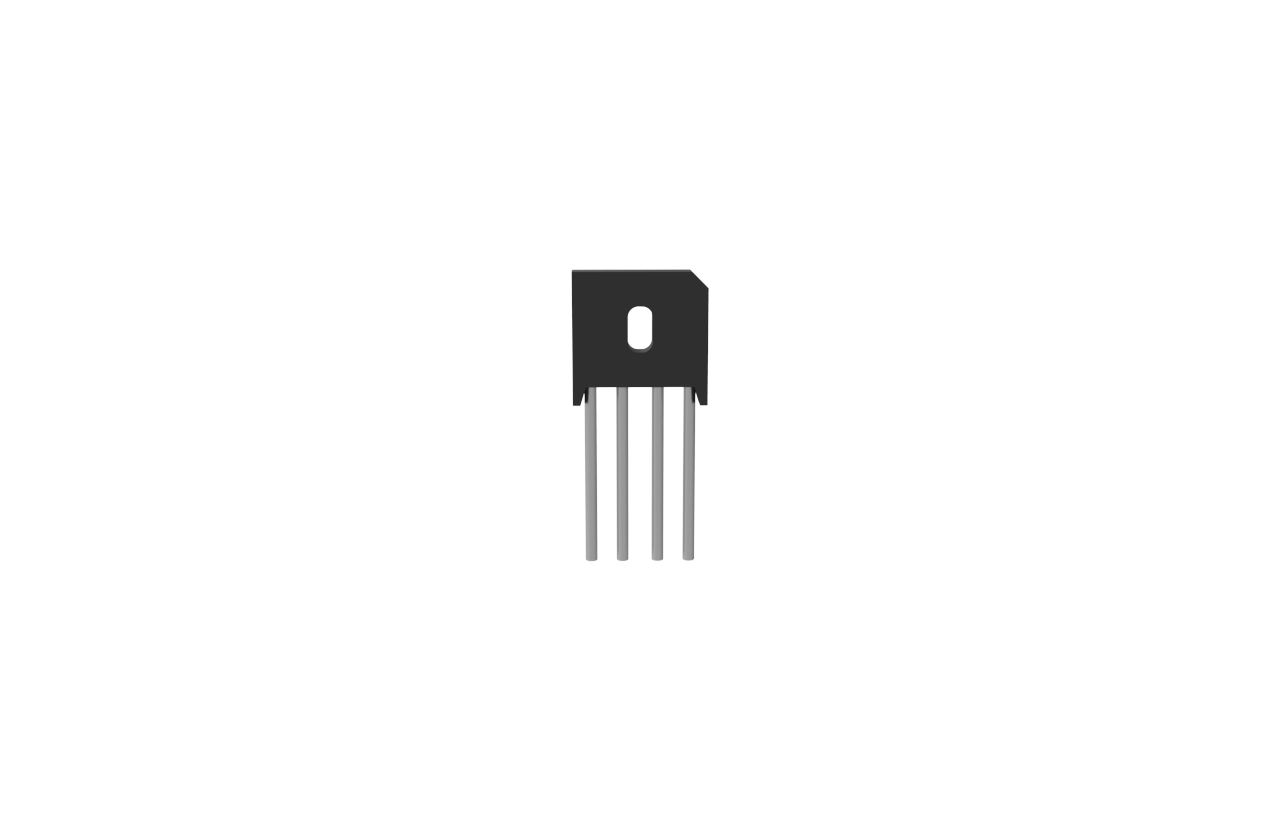

RS1005

  • Package Type:RS-6
  • Packing Info:Bulk: 400pcs/Box, 2.4K/Ctn .;
  • Category:Bridge Rectifiers
  • MPN:RS1005-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
RS1005 1-Phase Bridge 10 600 1 10 250 5 600 150
Part Number RS1005 Number of Functions 1-Phase Bridge IF(AV)(A)  10 VRWM (V)  600 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  10 		IFSM (A)  250 IF(A)  5 VR (V)  600 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
RS1005 RS-6 RS-6 6.3630 RS1005

Environmental Information link icon

Reliability Report Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
22483.04 5.1

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
