Bridge Rectifiers | Status : Active

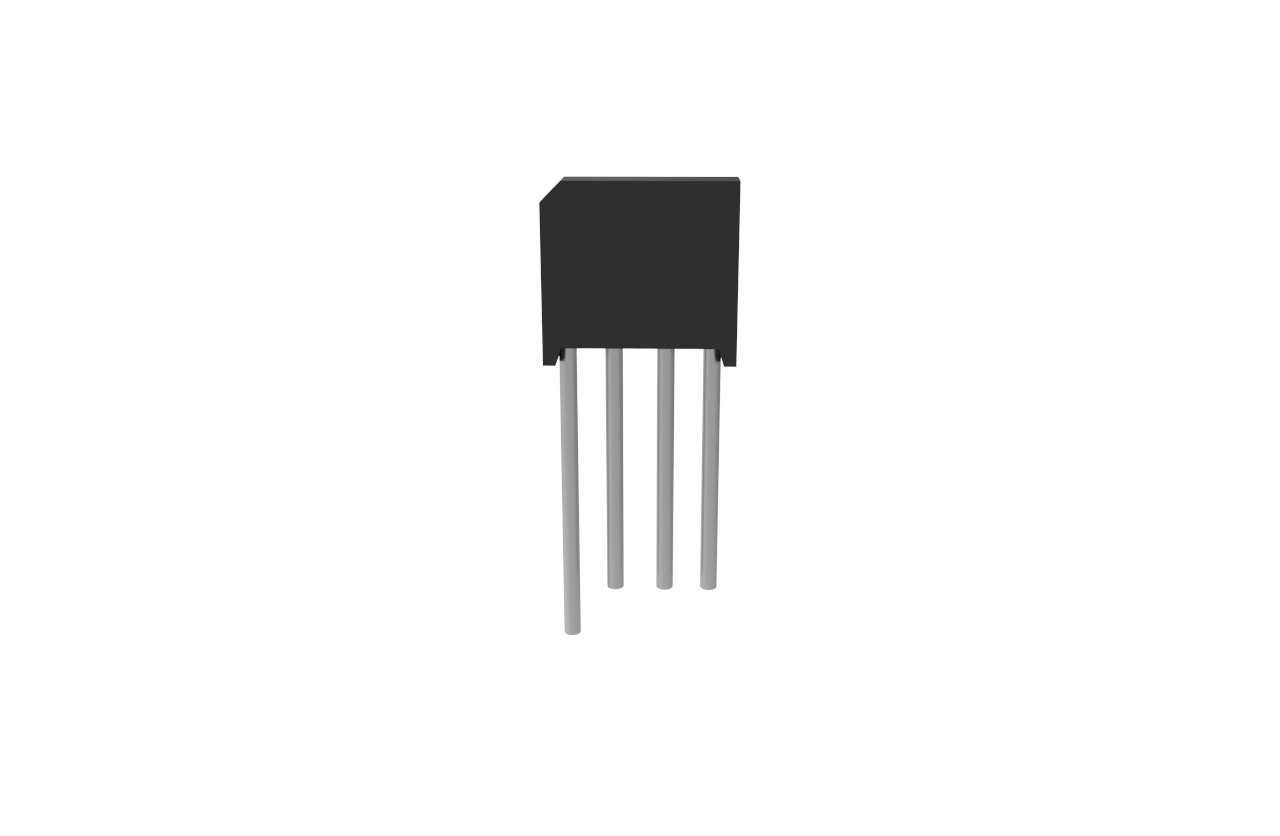

RS406GL

  • Package Type:RS-4L
  • Packing Info:Bulk;
  • Category:Bridge Rectifiers
  • MPN:RS406GL-BPP, RS406GL-BPT-2, RS406GL-BPT-1, RS406GL-BPT-4, RS406GL-BPT-5, RS406GL-BPT-3
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
RS406GL 1-Phase Bridge 4 800 1.1 5 200 4 800 150
Part Number RS406GL Number of Functions 1-Phase Bridge IF(AV)(A)  4 VRWM (V)  800 VF
(V) [max]@IF(A)  1.1 		IR (uA)  [max] @
VR  5 		IFSM (A)  200 IF(A)  4 VR (V)  800 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
RS406GL RS-4L RS-4L 5.7640 RS406GL

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 27479.27 4.2

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
