Schottky Barrier Rectifiers | Status : Active

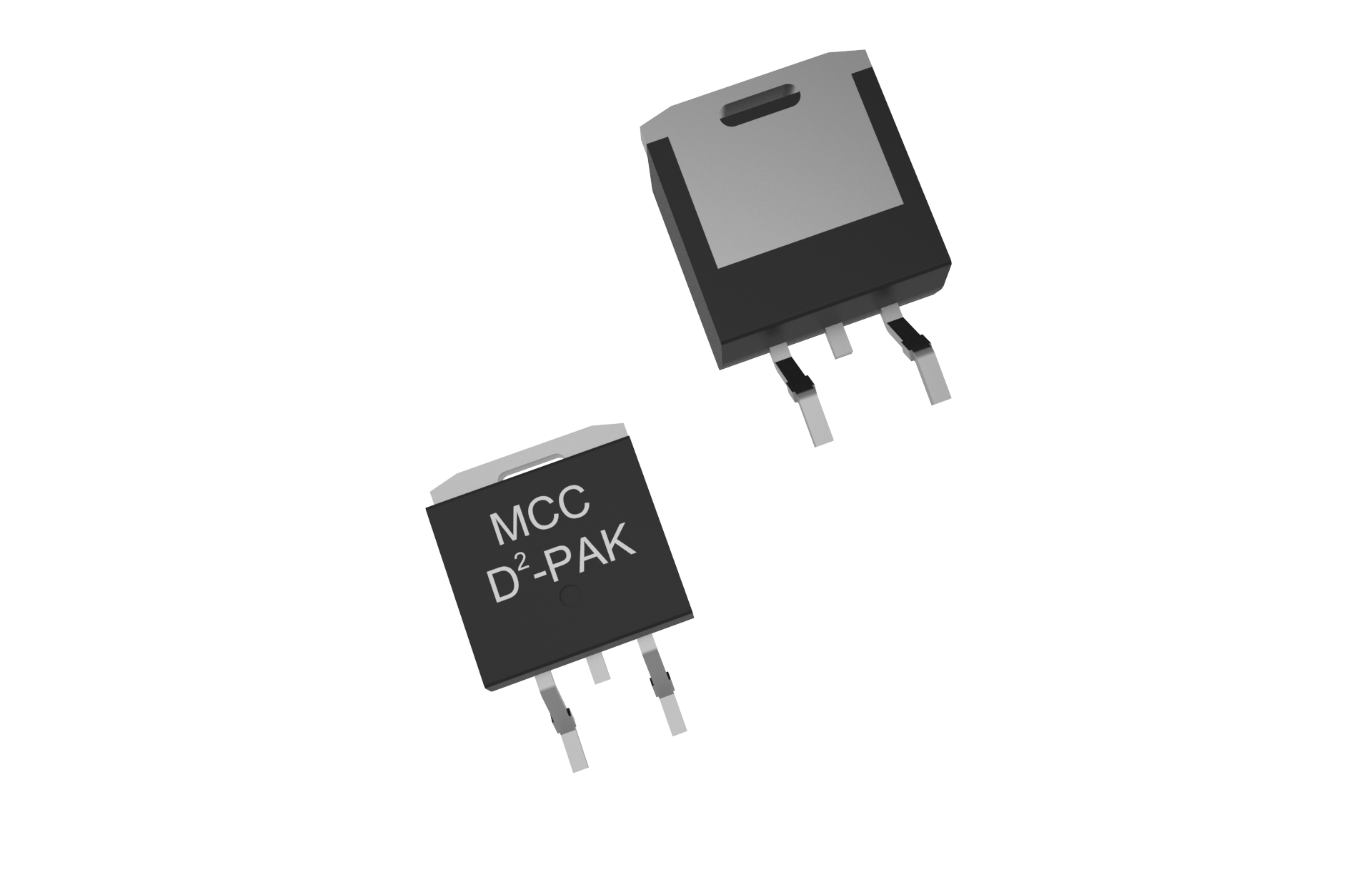

MBRB20100CT

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions Configuration IF(AV)(A) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IR (uA) IFSM (A) VR (V) IF(A) Tj [max]
(°C)
MBRB20100CT Dual Common Cathode 20 100 0.95 100
Part Number MBRB20100CT Number of Functions Dual Configuration Common Cathode IF(AV)(A)  20 VF
(V) [max]@IF(A)  100 		IR (uA)  [max] @
VR  0.95 		IR (uA)  100 IFSM (A)   VR (V)   IF(A)   Tj [max]
(°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
MBRB20100CT D2-PAK D2-PAK 1.4040 MBRB20100CT Tube: 50pcs/Tube, 5K/Ctn,Tape : 800pcs/Reel , 8K/Ctn.;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free
Halogen Free

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
