Zener Diodes | Status : Active

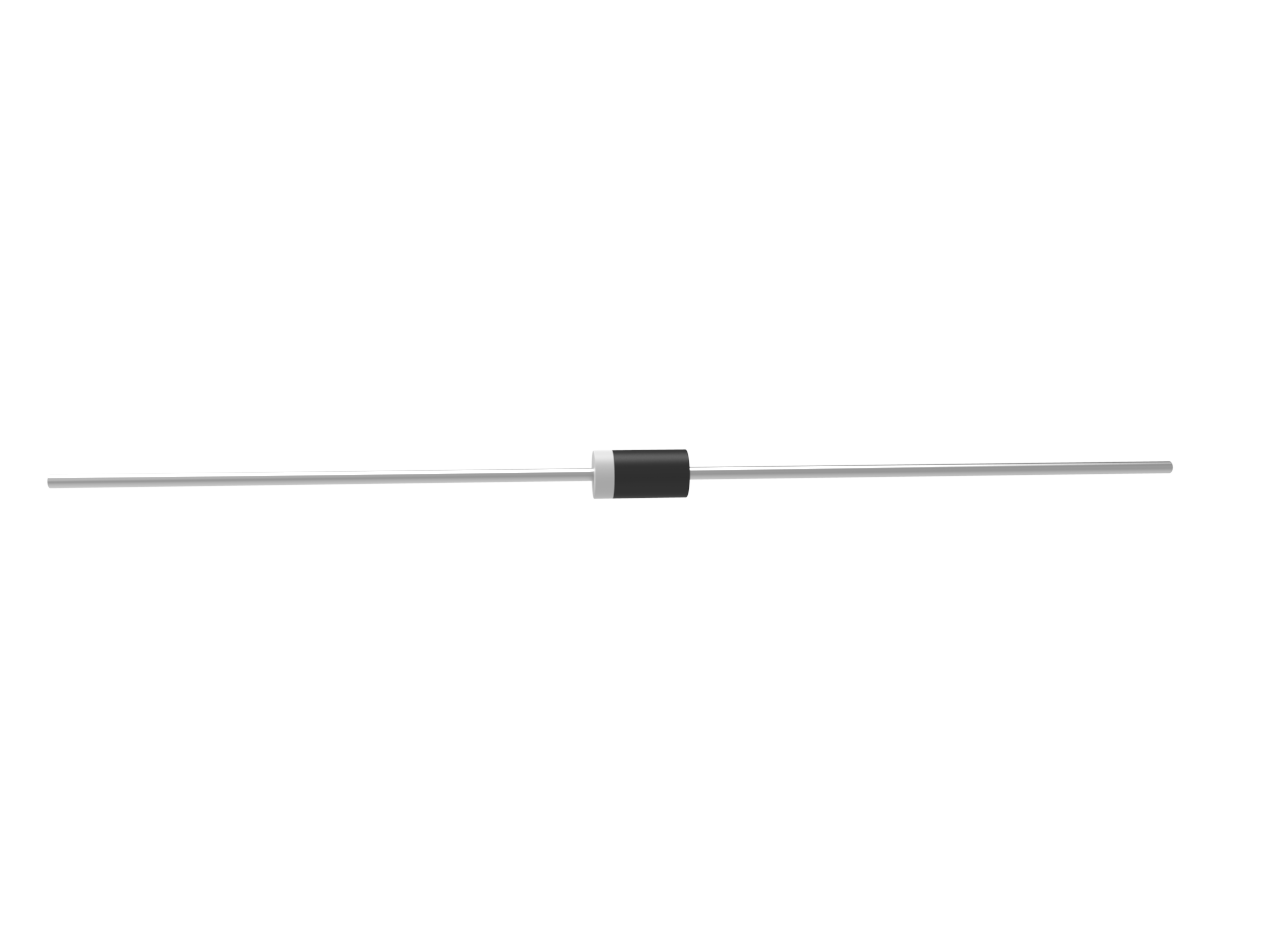

1EZ10D5

  • Package Type:DO-41
  • Packing Info:Tape : 6K/Reel, 20K/Ctn; Bulk: 1K/Box, 50K/Ctn; T/B: 5K/Ammo Box, 50K/Ctn.;
  • Category:Zener Diodes
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
1EZ10D5 Single 1 10 25 0.01 7.6 7 700 0.25 150
Part Number 1EZ10D5 Number of Functions Single PD(W)  1 VZ[Nom](V)  10 IZT(mA)  25 IR (mA) [max]
@VR  0.01 		VR(V)  7.6 ZZT(Ω)
@IZT  7 		ZZK(Ω)
@IZT  700 		IZK(mA)  0.25 Tj [max]
(°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
1EZ10D5 DO-41 DO-41 0.3300 1EZ10D5 Tape : 6K/Reel, 20K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
27479.27 4.2
