Zener Diodes | Status : Active

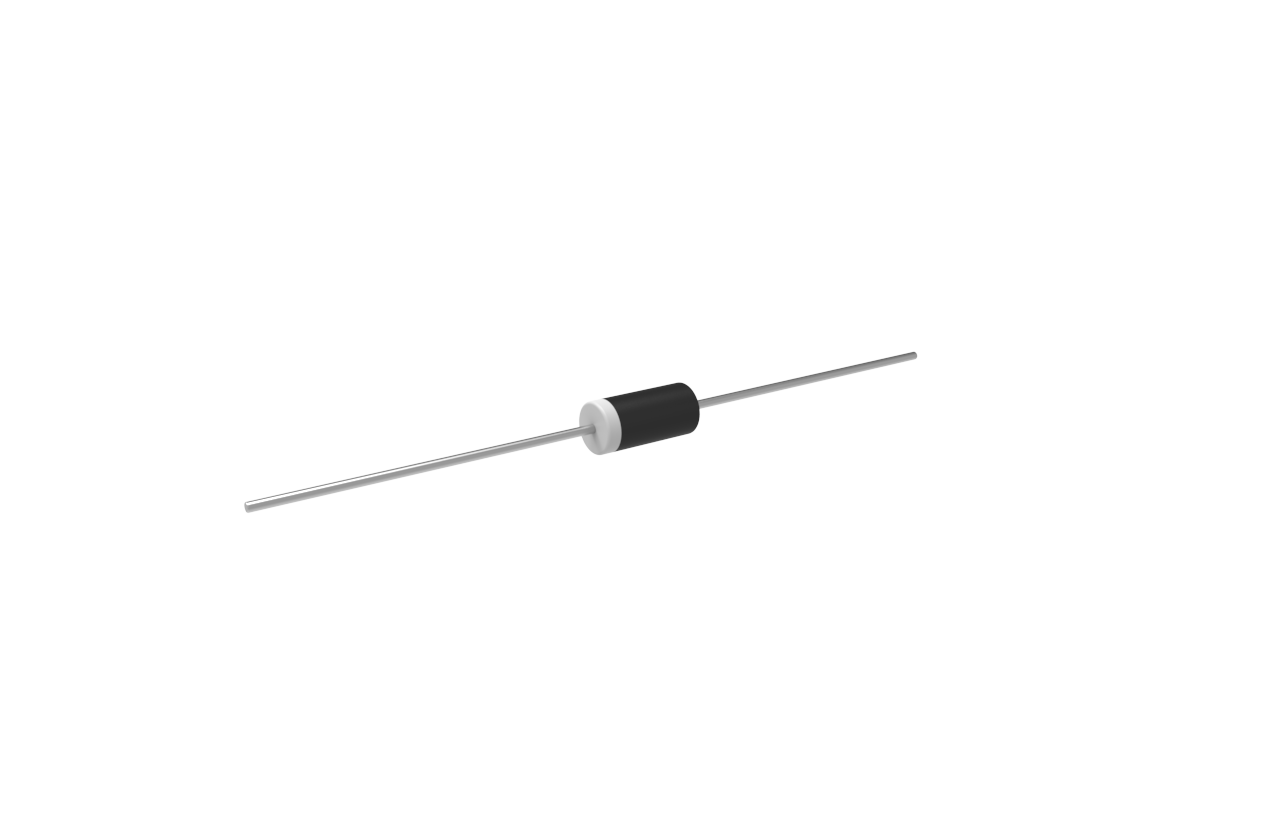

1N5353B

  • Package Type:DO-15
  • Packing Info:Tape : 4K/Reel, 16K/Ctn; Bulk: 500pcs/Box, 25K/Ctn; T/B: 3K/Ammo Box, 30K/Ctn.
  • Category:Zener Diodes
  • MPN:1N5353B-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions PD(W) VZ[Nom](V) IZT(mA) IR (mA) [max]
@VR		 VR(V) ZZT(Ω)
@IZT		 ZZK(Ω)
@IZT		 IZK(mA) Tj [max]
(°C)
1N5353B Single 5 16 75 0.001 12.2 2.5 75 1 200
Part Number 1N5353B Number of Functions Single PD(W)  5 VZ[Nom](V)  16 IZT(mA)  75 IR (mA) [max]
@VR  0.001 		VR(V)  12.2 ZZT(Ω)
@IZT  2.5 		ZZK(Ω)
@IZT  75 		IZK(mA)  1 Tj [max]
(°C)  200

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
1N5353B DO-15 DO-15 0.3880 1N5353B Tape : 4K/Reel, 16K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
80246.89 1.4

ECN/PCN

ECN/PCN No# Title PDF Issued Date
060324-1 Additional Assembly & test centre PDF 06/03/2024
102522-1 Additional Qualified (A/T) Assembly/Test Site And New Die Source PDF 10/25/2022
090111 MCC developed a new silicon wafer fab source for zeners PDF 09/01/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
