ESD Protection Devices | Status : Active

ESDSLC16VLB

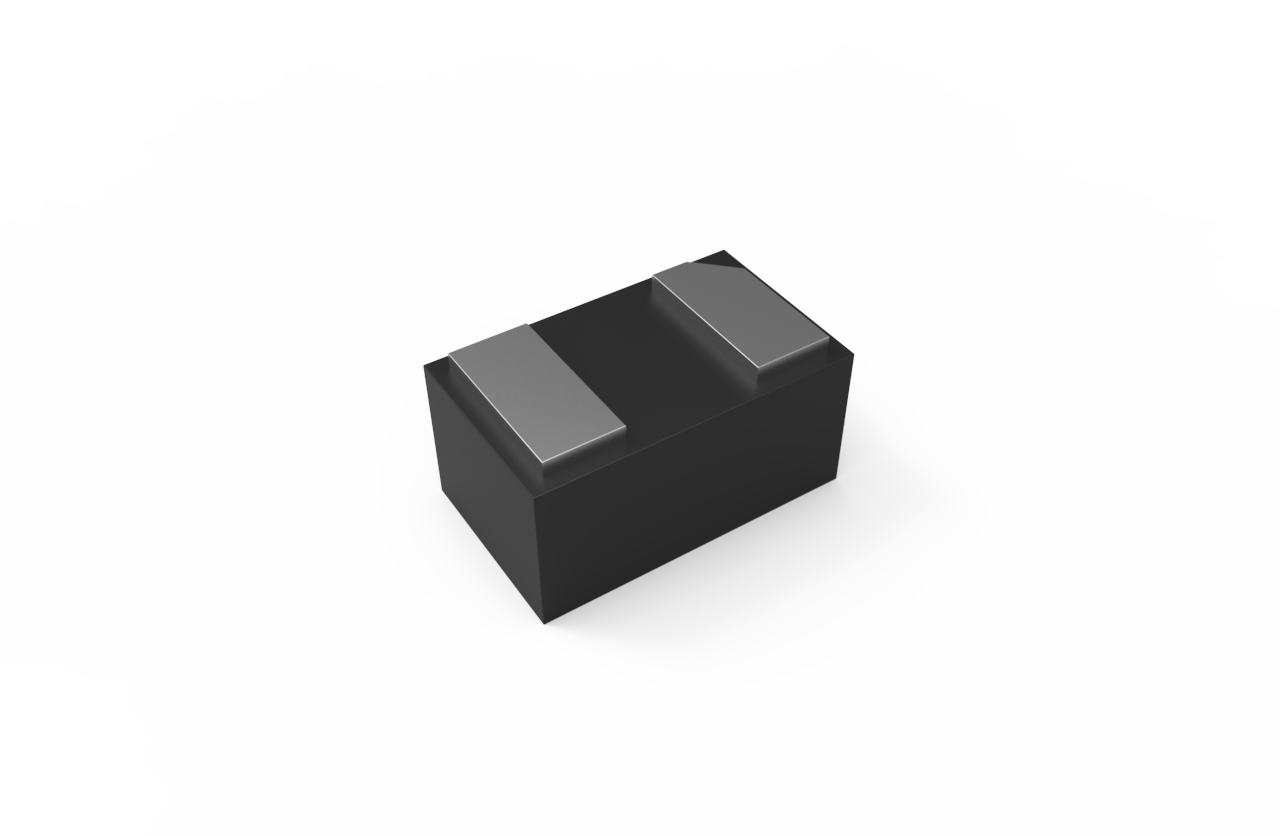

  • Package Type:DFN1006-2
  • Packing Info:Tape&Reel: 10Kpcs/Reel;
  • Category:ESD Protection Devices
  • MPN:ESDSLC16VLB-TP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions Configuration Reverse
Standoff
Voltage
VRWM(V)		 Peak Pulse
Current
IPP(A)		 Max.
Clamping
Voltage
VC (V)		 Junction
Capacitance
CJ(pF)		 Peak Pluse
Power
Dissipation
PPPK (W)		 Maximum
Reverse
Leakage
IR (uA)		 Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)		 VESDIEC61000-4-2
Air/Contact
(kV)
ESDSLC16VLB 1 Bidirectional 16 1 30 0.9 30 0.1 18 125 ±15/±8
Part Number ESDSLC16VLB Number of Functions 1 Configuration Bidirectional Reverse
Standoff
Voltage
VRWM(V)  16 		Peak Pulse
Current
IPP(A)  1 		Max.
Clamping
Voltage
VC (V)  30 		Junction
Capacitance
CJ(pF)  0.9 		Peak Pluse
Power
Dissipation
PPPK (W)  30 		Maximum
Reverse
Leakage
IR (uA)  0.1 		Breakdown
Voltage
Min VBR(V)  18 		Breakdown
Voltage
Max VBR(V)   		Junction
Temperature
Tj [max] (°C)  125 		VESDIEC61000-4-2
Air/Contact
(kV)  ±15/±8

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
ESDSLC16VLB DFN1006-2 DFN1006-2 0.0011 ZZ Tape&Reel: 10Kpcs/Reel;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Halogen Free MTBF FIT
Halogen Free 5233.80 21.8

ECN/PCN

ECN/PCN No# Title PDF Issued Date
051523-1 Wafer Design Upgrade For Select Parts PDF 05/15/2023
