TVS | Status : Active

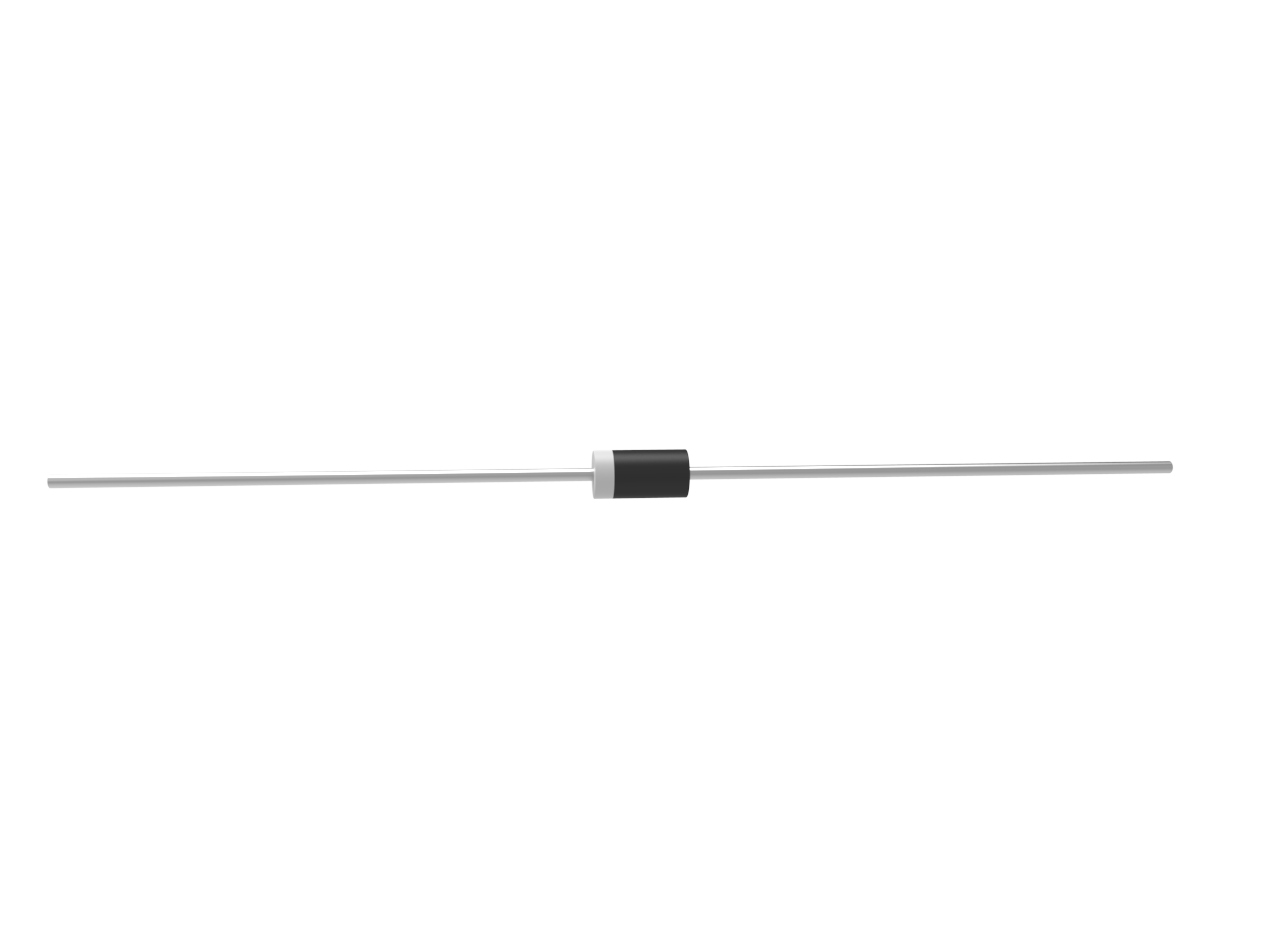

P4KE120CA

  • Package Type:DO-41
  • Packing Info:Tape : 5K/Reel, 20K/Ctn; Bulk: 1K/Box, 50K/Ctn; T/B: 5K/Ammo Box, 50K/Ctn.;
  • Category:TVS
  • MPN:P4KE120CA-TP, P4KE120CA-AP, P4KE120CA-BP
Check Stock Add To Cart
Datasheet ECAD Model Spice Model Reliability Data

Product Detail

Part Number Configuration Peak Pulse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
P4KE120CA Bidirectional 400 102 1 165 2.5 114 126 175
Part Number P4KE120CA Configuration Bidirectional Peak Pulse
Power
Dissipation
PPPM (W)  400 		Reverse
Standoff
Voltage
VRWM(V)  102 		Reverse
Leakage
IR(uA)  1 		Max.
Clamping
Voltage
VC (V)  165 		Peak Pulse
Current
IPP(A)  2.5 		Breakdown
Voltage
Min VBR(V)  114 		Breakdown
Voltage
Max VBR(V)  126 		Junction
Temperature
Tj [max] (°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Packing Info
P4KE120CA DO-41 DO-41 0.3300 Tape : 5K/Reel, 20K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 80246.89 1.4

ECN/PCN

ECN/PCN No# Title PDF Issued Date
091911 Revise the leakage parameter for some Transient Voltage Suppressors PDF 09/19/2011
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
