TVS | Status : Active

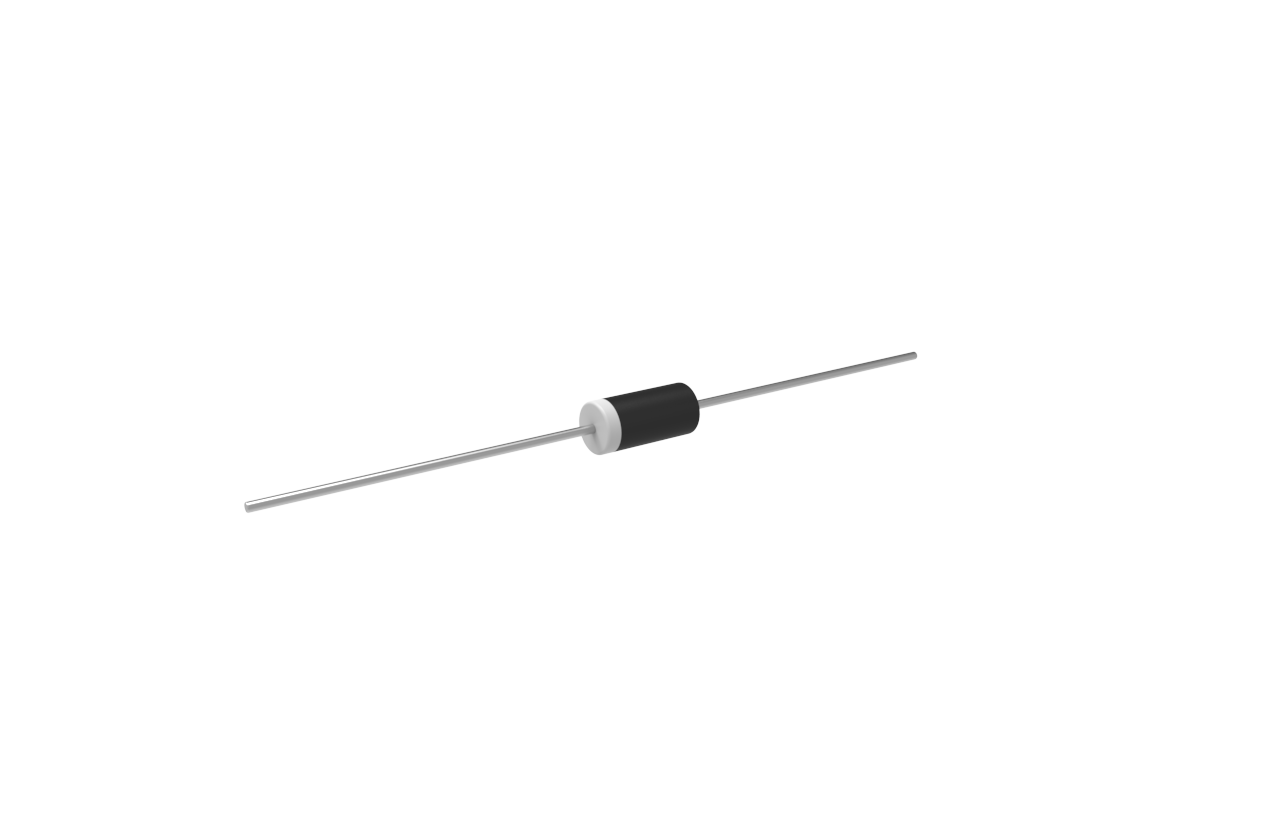

P6KE12A

  • Package Type:DO-15
  • Packing Info:Tape : 4K/Reel, 16K/Ctn; Bulk: 500pcs/Box, 25K/Ctn;
  • Category:TVS
  • MPN:P6KE12A-TP, P6KE12A-AP, P6KE12A-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Configuration Peak Pulse
Power
Dissipation
PPPM (W)		 Reverse
Standoff
Voltage
VRWM(V)		 Reverse
Leakage
IR(uA)		 Max.
Clamping
Voltage
VC (V)		 Peak Pulse
Current
IPP(A) 		Breakdown
Voltage
Min VBR(V)		 Breakdown
Voltage
Max VBR(V)		 Junction
Temperature
Tj [max] (°C)
P6KE12A Unidirectional 600 10.2 5 16.7 36 11.4 12.6 175
Part Number P6KE12A Configuration Unidirectional Peak Pulse
Power
Dissipation
PPPM (W)  600 		Reverse
Standoff
Voltage
VRWM(V)  10.2 		Reverse
Leakage
IR(uA)  5 		Max.
Clamping
Voltage
VC (V)  16.7 		Peak Pulse
Current
IPP(A)  36 		Breakdown
Voltage
Min VBR(V)  11.4 		Breakdown
Voltage
Max VBR(V)  12.6 		Junction
Temperature
Tj [max] (°C)  175

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Packing Info
P6KE12A DO-15 DO-15 0.3880 Tape : 4K/Reel, 16K/Ctn;

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
MTBF FIT
80246.89 1.4

ECN/PCN

ECN/PCN No# Title PDF Issued Date
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
