Bridge Rectifiers | Status : NRND

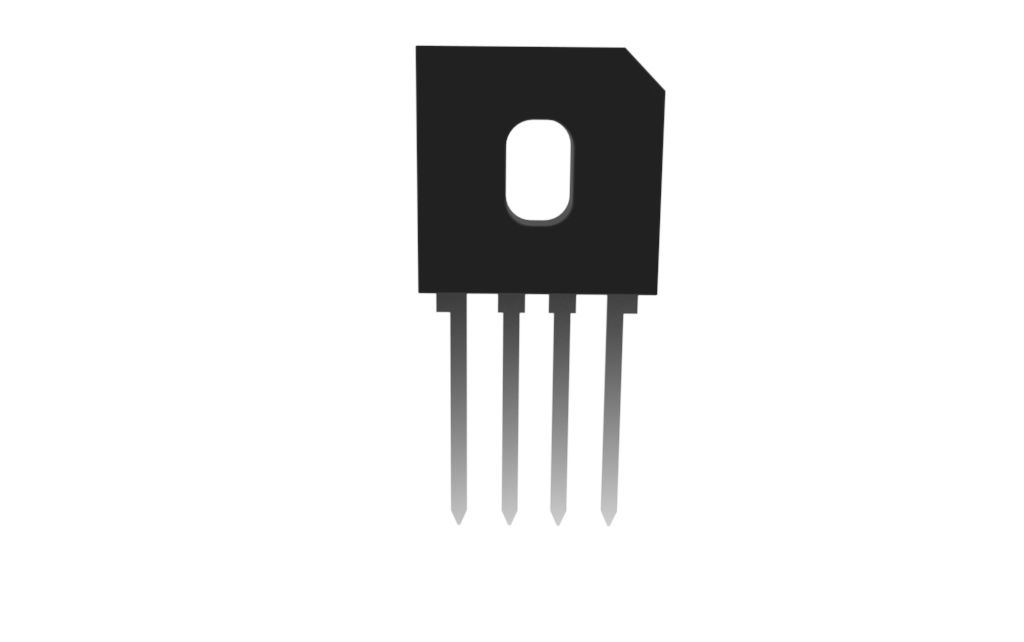

GBU4A

  • Package Type:GBU
  • Packing Info:Tube : 20pcs/Tube, 1K/Box, 2K/Ctn;
  • Category:Bridge Rectifiers
  • MPN:GBU4A-BP
Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBU4A 1-Phase Bridge 4 50 1 5 160 2 50 150
Part Number GBU4A Number of Functions 1-Phase Bridge IF(AV)(A)  4 VRWM (V)  50 VF
(V) [max]@IF(A)  1 		IR (uA)  [max] @
VR  5 		IFSM (A)  160 IF(A)  2 VR (V)  50 Tj [max] (°C)  150

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBU4A GBU GBU 4.0280 GBU4A

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MTBF FIT
Tin Whisker Test Report 19984.92 5.7

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
080001 GBU Series Bridge Marking Side Adjustment PDF 04/01/2008
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003

Similar Recommendations

Part Number Category Package Type Status Datasheet
RS405GL BRIDGE RECTIFIERS RS-4L Active Datasheet
RS406GL BRIDGE RECTIFIERS RS-4L Active Datasheet
KBJ408G BRIDGE RECTIFIERS KBJ Active Datasheet
KBJ406G BRIDGE RECTIFIERS KBJ Active Datasheet
