Schottky Barrier Rectifiers | Status : Active
Automotive

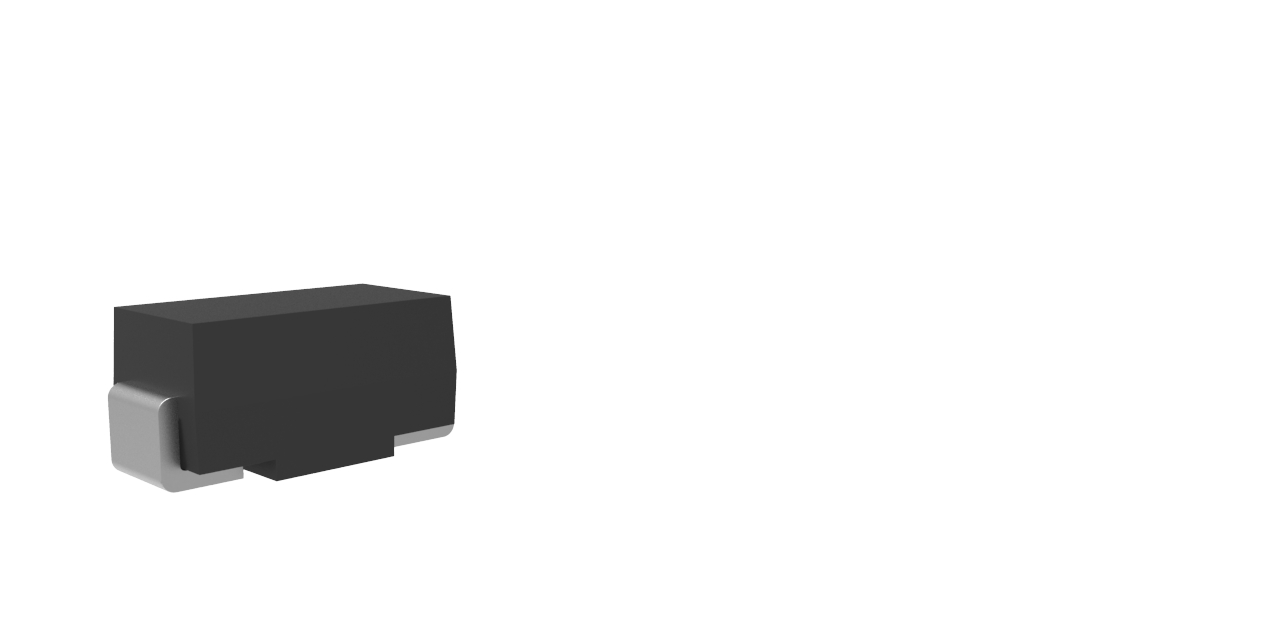

SS24HE3-L

Check Stock Add To Cart
Datasheet ECAD Model Reliability Data

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) VR (V) IF(A) Tj [max]
(°C)
SS24HE3-L Single 2 40 0.55 100 50 40 2
Part Number SS24HE3-L Number of Functions Single IF(AV)(A)  2 VRWM (V)  40 VF
(V) [max]@IF(A)  0.55 		IR (uA)  [max] @
VR  100 		IFSM (A)  50 VR (V)  40 IF(A)  2 Tj [max]
(°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code Packing Info
SS24HE3-L SMA SMA 0.0600 SS24 Tape: 5K/Reel, 80K/Ctn;

Environmental Information link icon

Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report MSL Halogen Free MTBF FIT
Tin Whisker Test Report 1 Halogen Free 17486.81 6.5

ECN/PCN

ECN/PCN No# Title PDF Issued Date
011524-1 Product design PDF 01/15/2024
