Bridge Rectifiers | Status : NRND

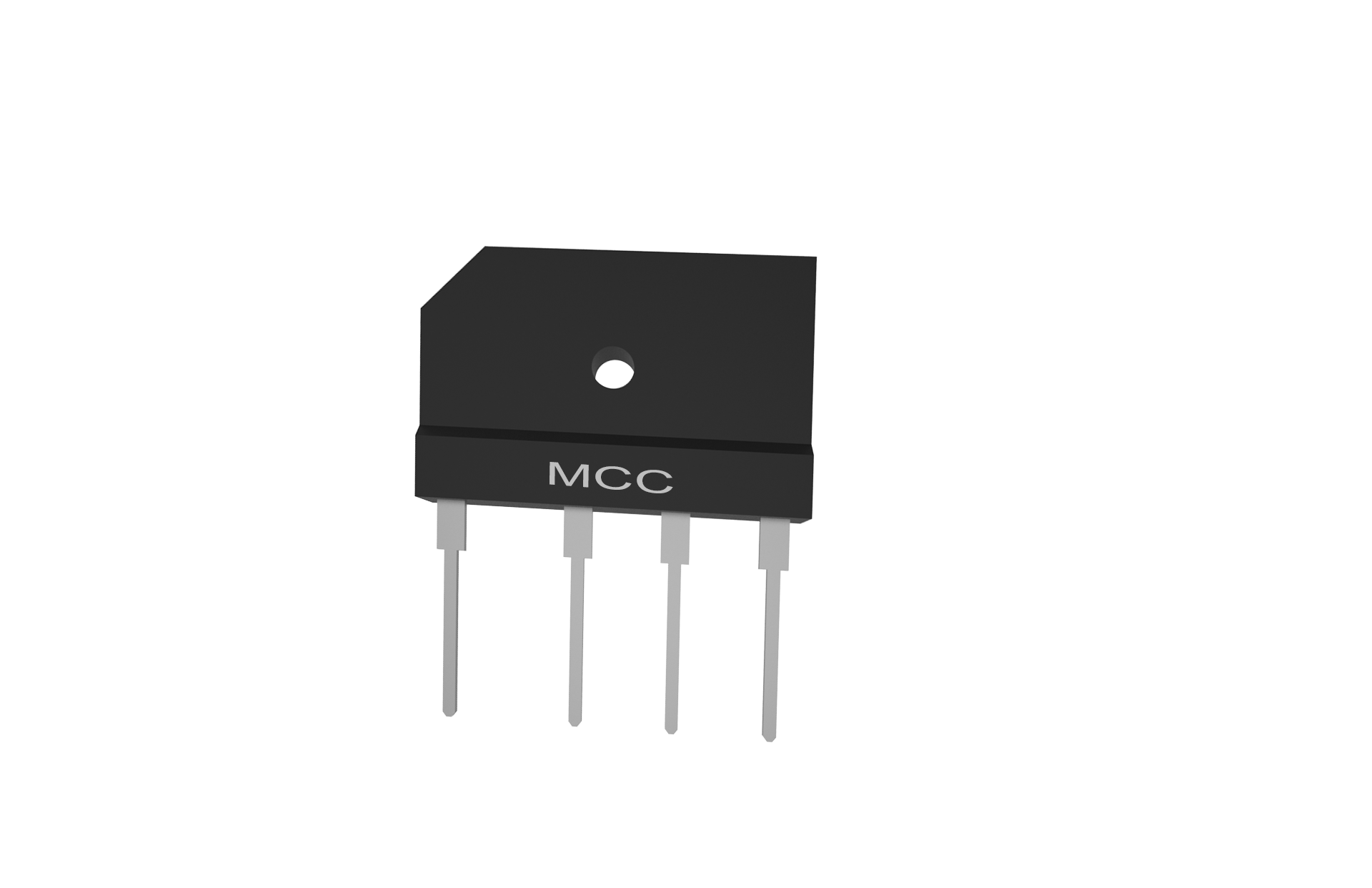

GBJ1004

Check Stock Add To Cart
Datasheet ECAD Model

Product Detail

Part Number Number of Functions IF(AV)(A) VRWM (V) VF
(V) [max]@IF(A)		 IR (uA)  [max] @
VR		 IFSM (A) IF(A) VR (V) Tj [max] (°C)
GBJ1004 1-Phase Bridge 10 400 1.05 10 170 5 400
Part Number GBJ1004 Number of Functions 1-Phase Bridge IF(AV)(A)  10 VRWM (V)  400 VF
(V) [max]@IF(A)  1.05 		IR (uA)  [max] @
VR  10 		IFSM (A)  170 IF(A)  5 VR (V)  400 Tj [max] (°C)

Packing Information

Part Number Package Type Packing Specification Component Weight (g) Marking Code
GBJ1004 GBJ GBJ 6.8730 GBJ1004

Environmental Information link icon

Reliability Report Material Composition Data Sheet Soldering Profile Environmental Compliance
Configuration image Download Configuration image Download Configuration image Download Environmental Compliance Download
Tin Whisker Test Report
Tin Whisker Test Report

ECN/PCN

ECN/PCN No# Title PDF Issued Date
021110 Bridge Rectifiers Min/Mult Quantity Update PDF 03/01/2010
070103 Pb(Lead) Free Plating Conversion PDF 07/01/2003
