Schottky Barrier Rectifiers | Status :
Active

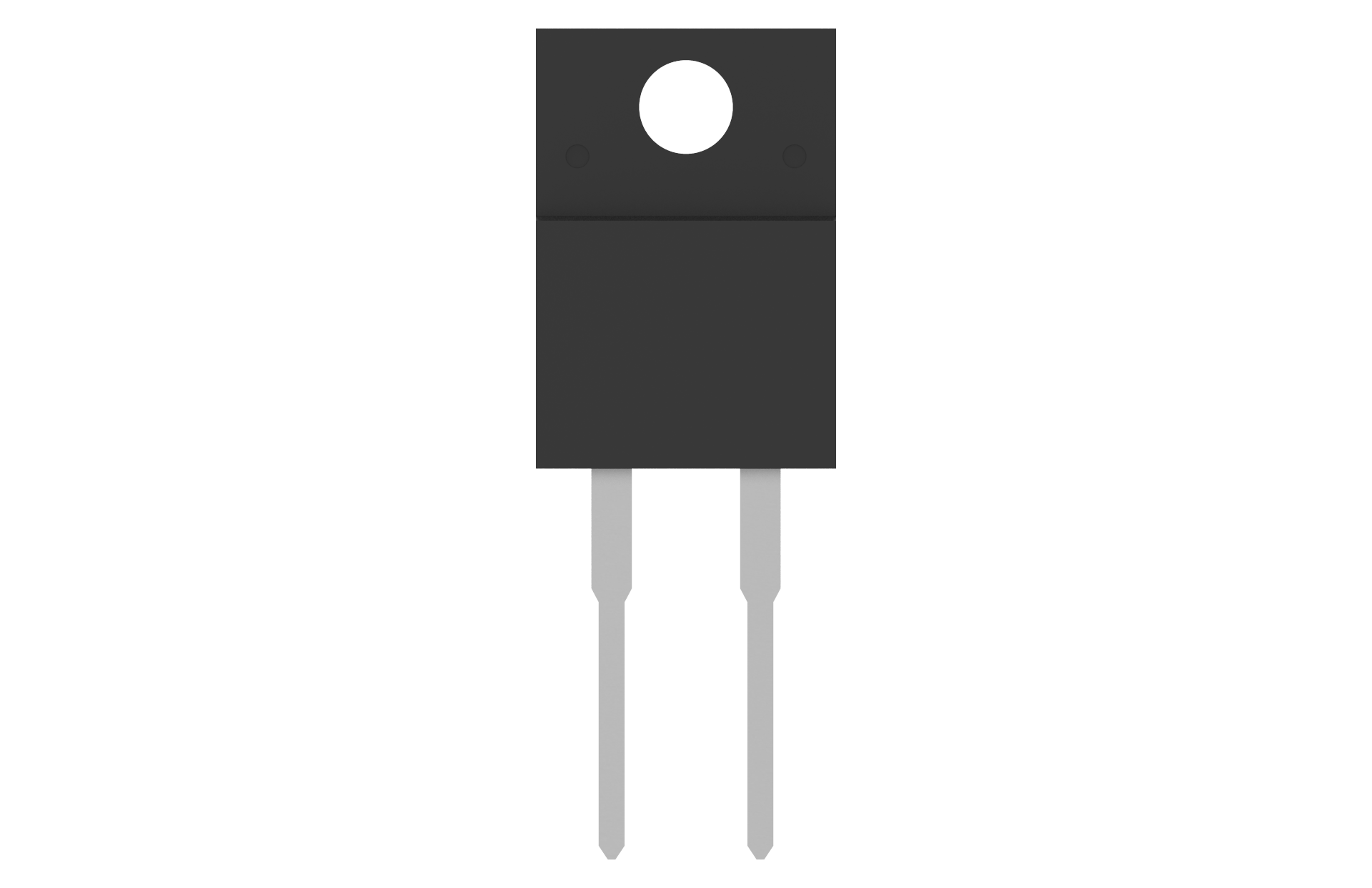

MBR1040F
- Package Type:ITO-220AC
- Packing Info:Tube: 50pcs/Tube, 1K/Box, 5k/Ctn .
- Category:Schottky Barrier Rectifiers
- MPN:MBR1040F-BP
Product Detail
| Part Number | Number of Functions | IF(AV)(A) | VRWM (V) | VF (V) [max]@IF(A) |
IR (uA) [max] @ VR |
IFSM (A) | VR (V) | IF(A) | Tj [max] (°C) |
|---|---|---|---|---|---|---|---|---|---|
| MBR1040F | Single | 10 | 40 | 0.55 | 100 | 150 | 40 | 10 | 150 |
| Part Number MBR1040F | Number of Functions Single | IF(AV)(A) 10 | VRWM (V) 40 |
VF (V) [max]@IF(A) 0.55 |
IR (uA) [max] @ VR 100 |
IFSM (A) 150 | VR (V) 40 | IF(A) 10 |
Tj [max] (°C) 150 |
Packing Information
Environmental Information
Download
| MSL | MTBF | FIT |
|---|---|---|
| N/A | 27479.27 | 4.2 |
ECN/PCN
| ECN/PCN No# | Title | Issued Date | |
|---|---|---|---|
| 080622-1 | ITO-220 Series Package Pin Dimension Change |
|
08/06/2022 |
| 070103 | Pb(Lead) Free Plating Conversion |
|
07/01/2003 |
